This item is available ex-stock, subject to prior sale.  Item condition: brand-new, unused, undamaged.
Please email sales@sanhat.com.pk or call 0333 454 1983 for further assistance, thank you.

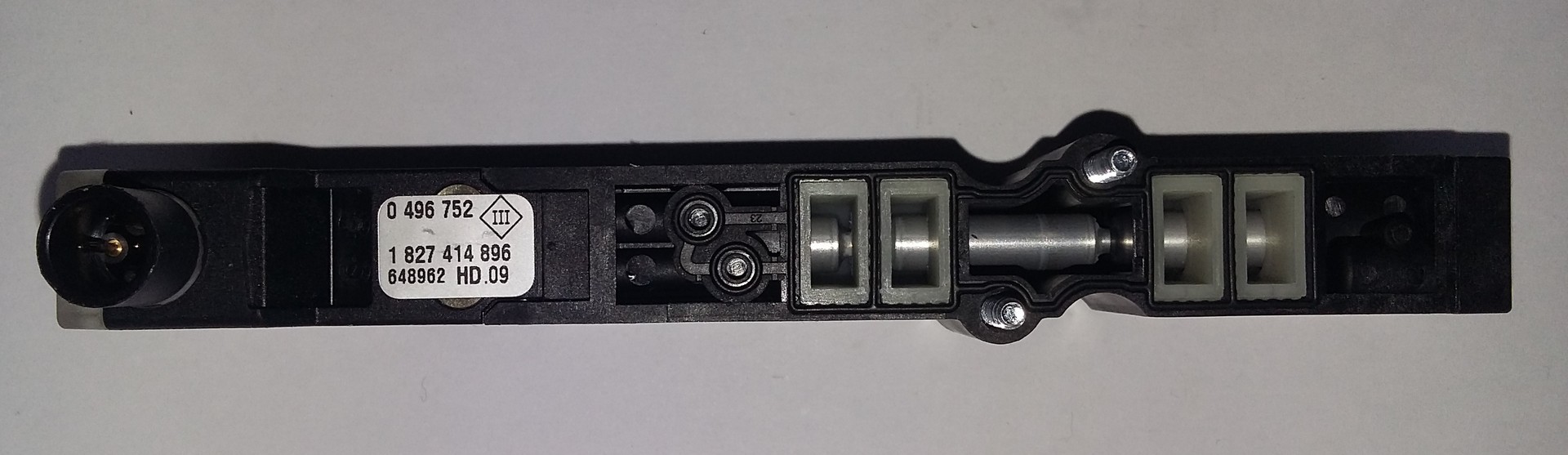

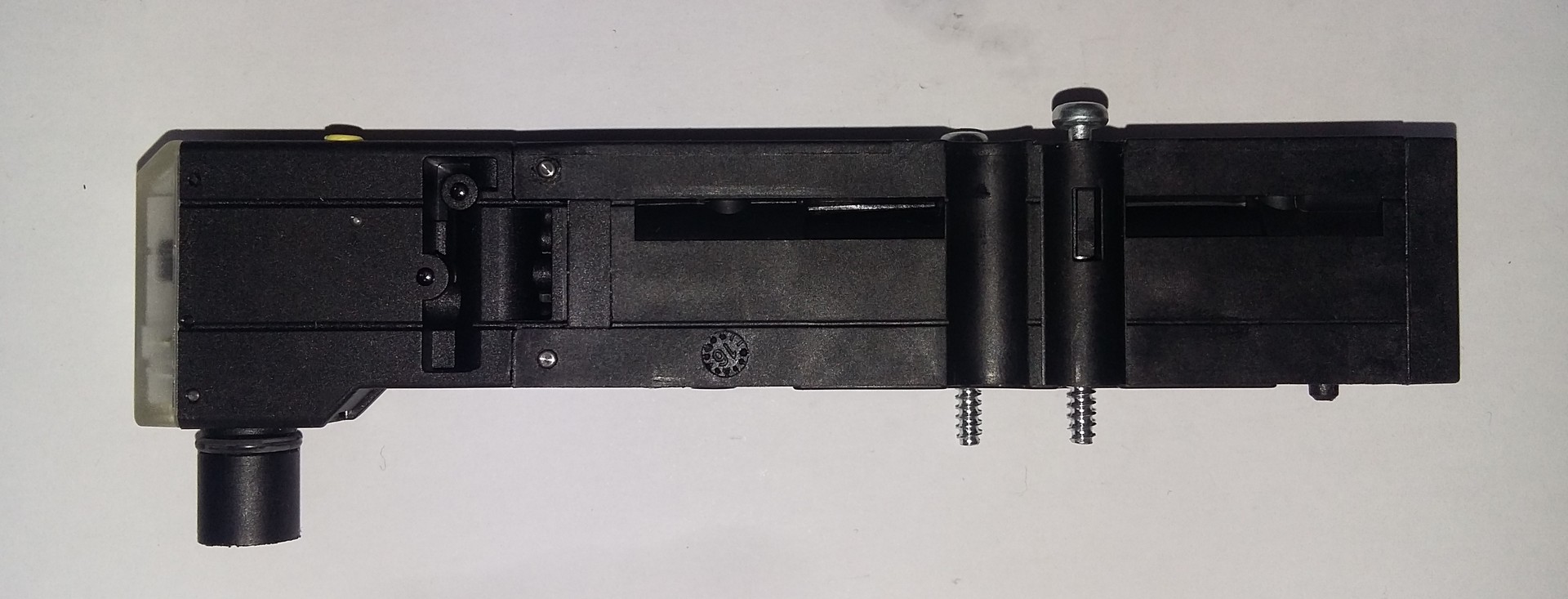

5/2 directional valve, 5/2 Way Pneumatic Valve

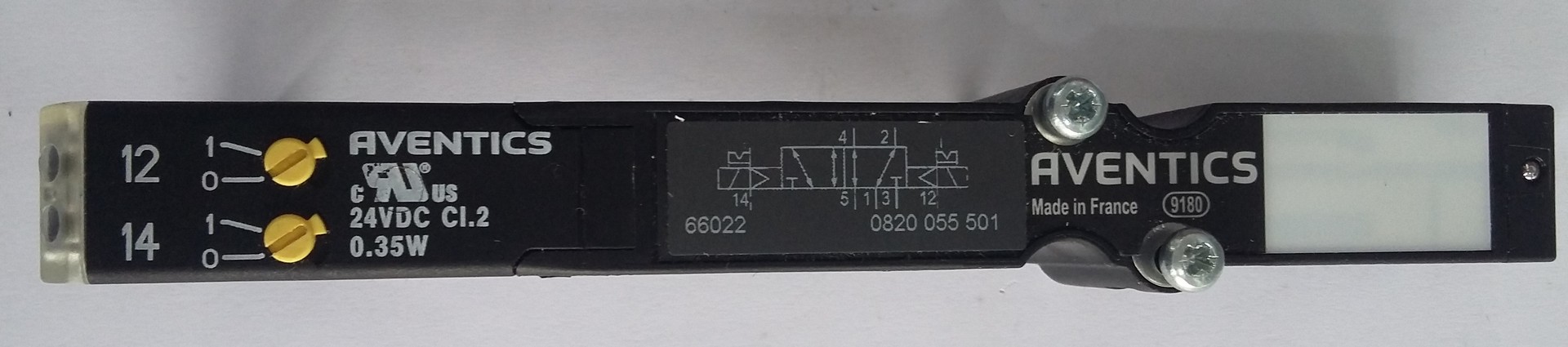

Aventics 0820055501
For series : HF03-LG, CL035/2Qn = 850 l/min Pilot valve width : 16 mm Plate connection Manual override : with detent double solenoid Pilot : External
Actuating control double solenoid
Switching principle 5/2
Version Spool valve, positive overlapping
Housing Polyamide fiber-glass reinforced
Sealing material Acrylonitrile butadiene rubber
UR (Underwriters Laboratories)
Protection class IP65
Nominal flow Qn 850 l/min
DC operating voltage 24 V
For series HF03-LG,CL03
Activation Electrically
directional valve 5/2
Make: Aventics
formerly Bosch Rexroth Pneumatics
Country of origin: Europe


5/2-directional valve, Series HF03-LG - 0820055501
For series : HF03-LG, CL03Qn = 850 l/minPilot valve width : 16 mmPlate connectionManual override : with detentDouble solenoidPilot : external, internal
Actuating control Double solenoid
Version Spool valve, positive overlapping
Housing Polyamide, fiber-glass reinforced
Sealing material Acrylonitrile butadiene rubber
Protection class IP65
Nominal flow Qn 850 l/min
DC operating voltage 24 V
For series HF03-LG,CL03
Activation Electrically
Version Spool valve, positive overlapping
Activation Electrically
Pilot external, internal
Sealing principle Soft sealing
Blocking principle Single base plate principle
Working pressure min./max. -0,9 ... 10 bar
Control pressure min./max. 2,5 ... 10 bar
Ambient temperature min./max. 0 ... 50 °C
Medium temperature min./max. 0 ... 50 °C
Medium Compressed air
Max. particle size 5 µm
Oil content of compressed air 0 ... 5 mg/m³
Nominal flow Qn 850 l/min
Pilot control exhaust With collective pilot air exhaust
Protection class with connection IP65

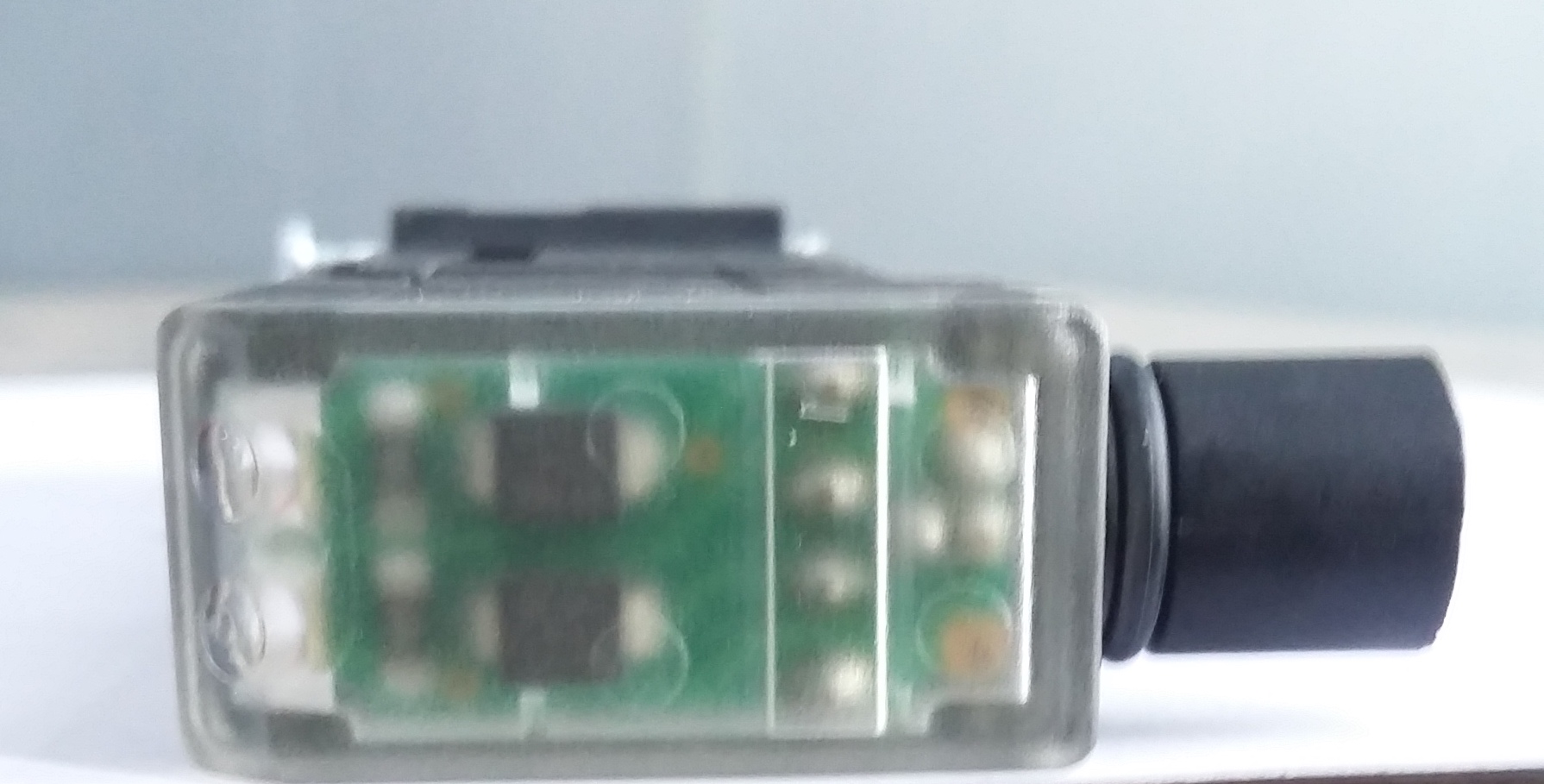

Protective circuit Z-diode
Reverse polarity protection Protected against polarity reversal
LED status display Yellow
Duty cycle 100 %
mounting screws cross recessed DIN EN ISO 4757-Z1
Mounting screw tightening torque 1,3 Nm
Weight 0,082 kg
The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).
The pilot type (external/internal) is not implemented in the valve, but in the end plate of the valve system.
The pilot valve is UL (Underwriters Laboratories) certified.
Material
Housing Polyamide, fiber-glass reinforced
Seals Acrylonitrile butadiene rubber
