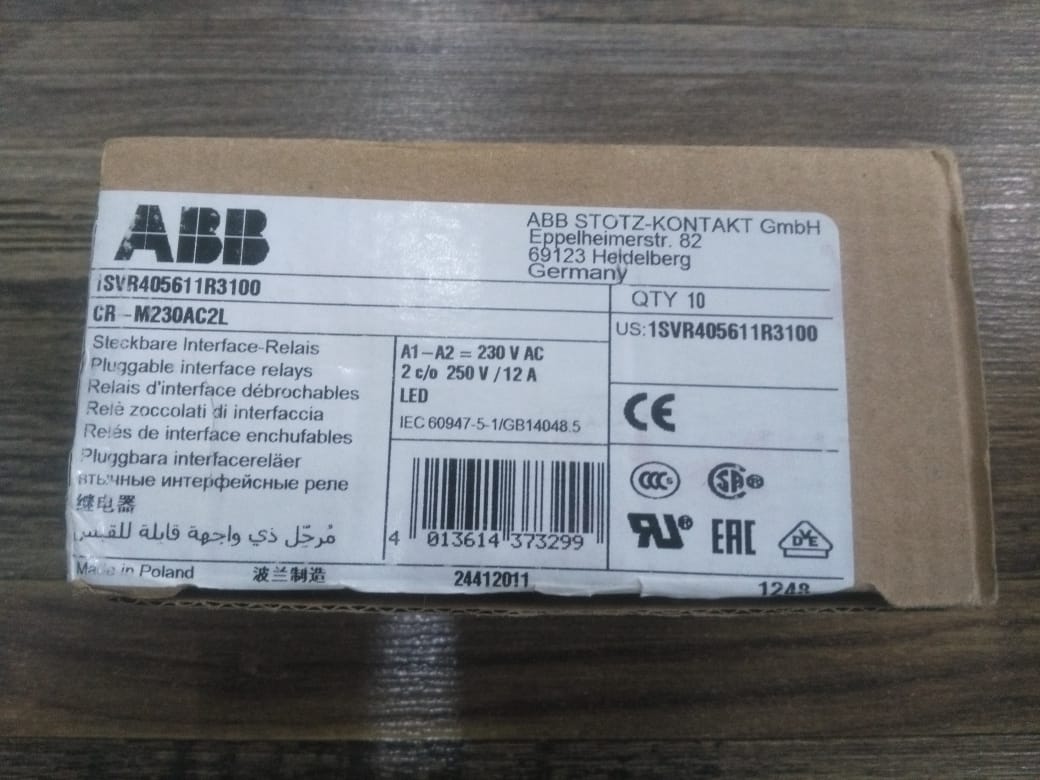

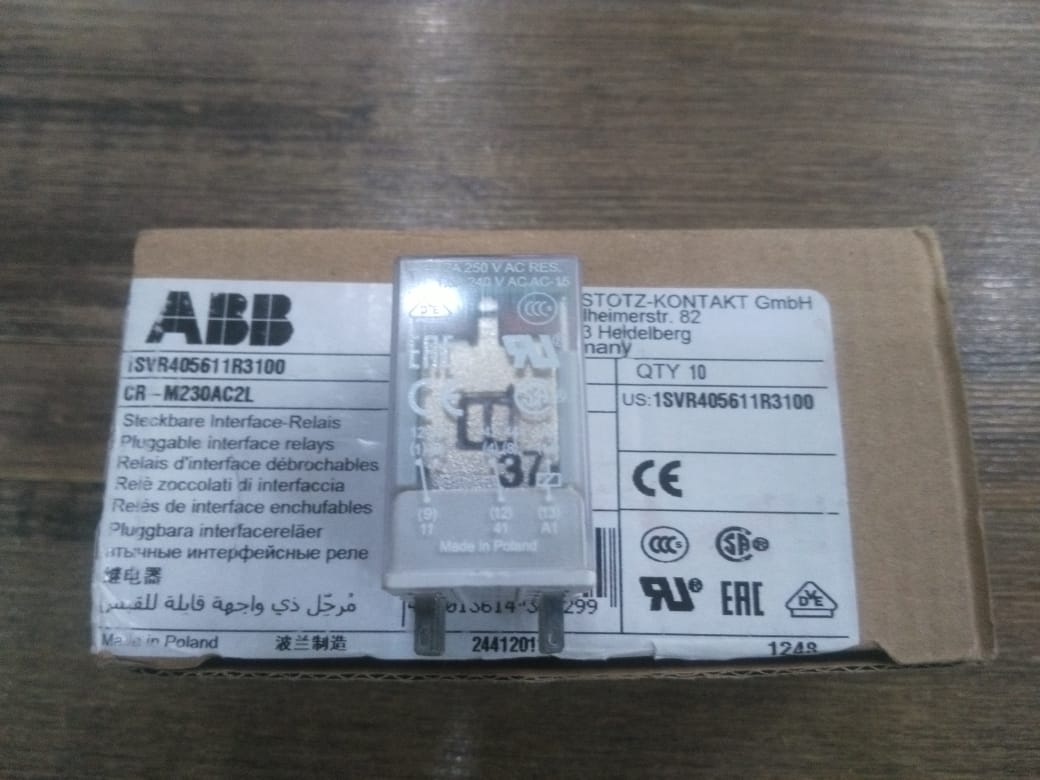

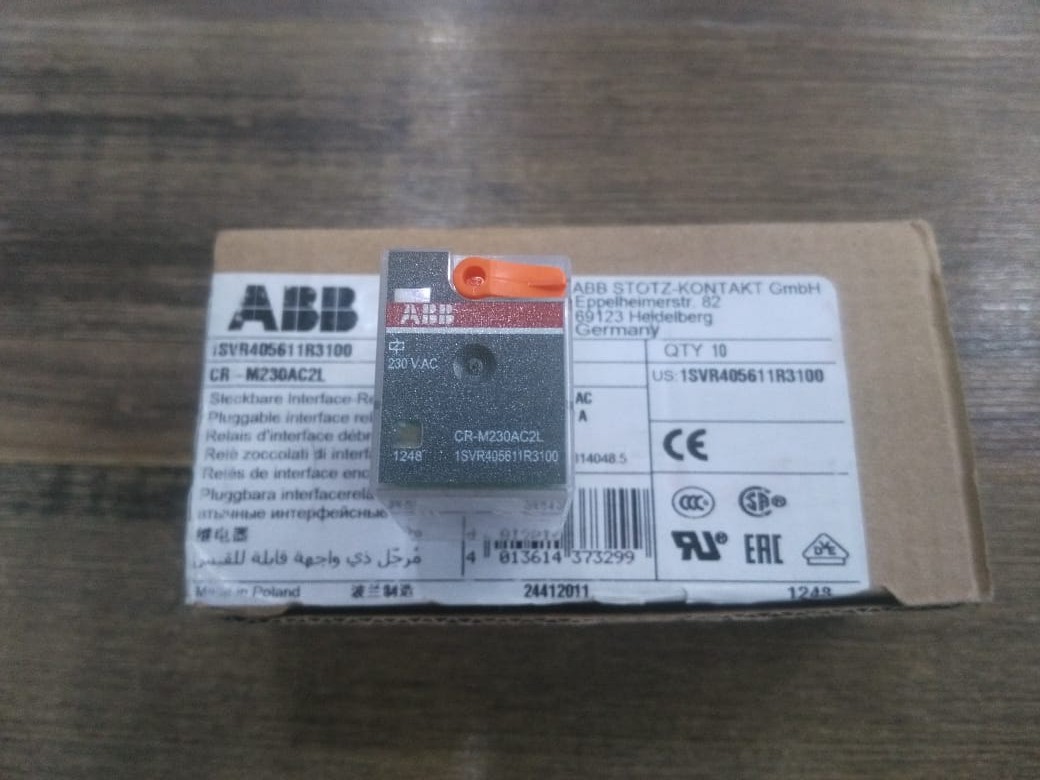

Pluggable Interface Relay, 250 Volt / 12 Ampere, 230 V AC
Type: CR-M230AC2L
Pluggable interface relay 2c/o, A1-A2= 230VAC, 250V/12A, LED
Product ID:1SVR405611R3100
The CR-M230AC2L pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 230 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A. The relay has an integrated orange test button for manual actuation and locking of the output contacts and an integrated LED. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
Dimensions
Product Net Width:21.2 mm
Product Net Height:35.6 mm
Product Net Depth / Length:27.5 mm
Product Net Weight:0.033 kg
Technical
Function:Pluggable miniature interface relay CR-M
Sub-Function:Relay with built in LED
Output:2 c/o (SPDT) contacts
Output Signal:250 V / 12 A
Rated Control Supply Voltage (Us):230 V AC
Environmental
RoHS Status: Following EU Directive 2011/65/EU
