Offering > Stock Clearance
This item is available ex-stock, subject to prior sale. Item condition: brand-new, unused, undamaged.
Please email sales@sanhat.com.pk or call 0333 454 1983 for further assistance, thank you.
Filter Silencer, 0 bar ... 16 bar, ≥ 4000 l/min, -10 °C ... 60 °C

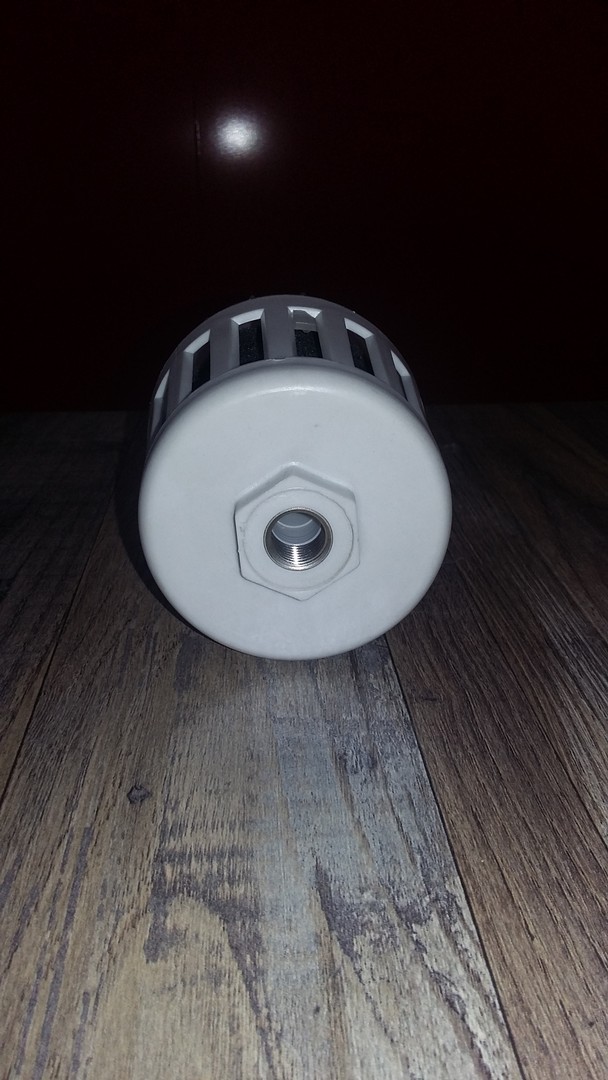

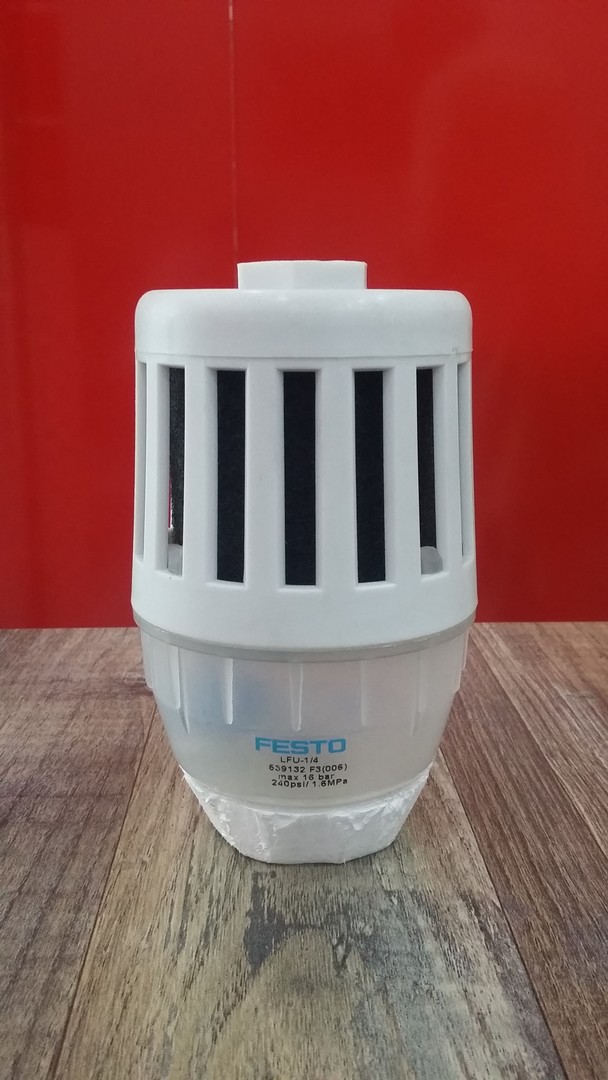

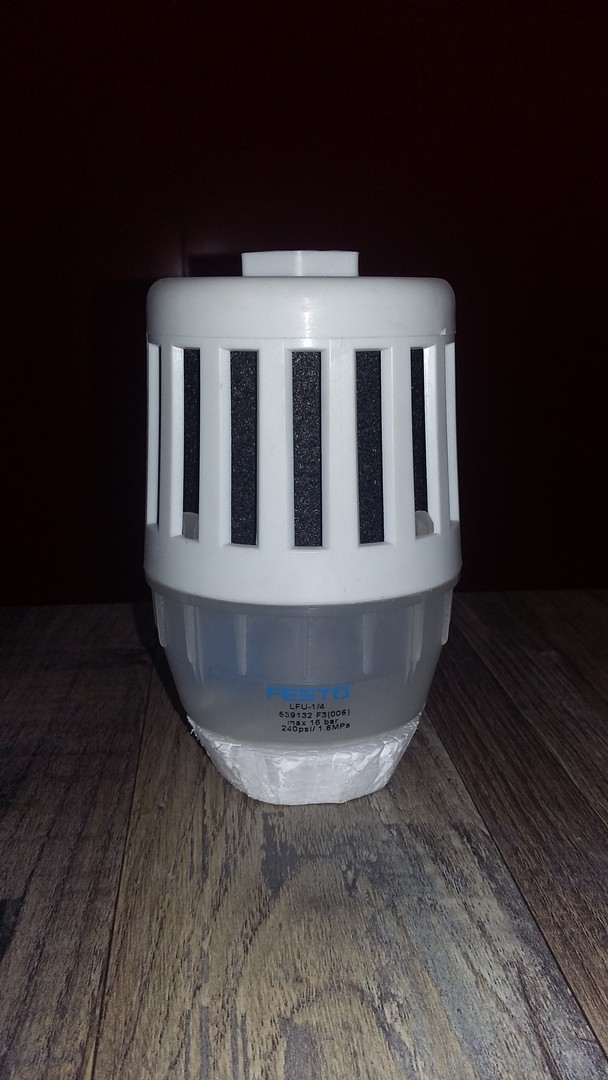

Festo Filter silencer LFU-1/4
PN 539132
F3 (006)
Max 16 bar
240 pal/1.6MPa
Size G1/4
Type code LFU
Mounting position Vertical +/- 5°
Grade of filtration 1 µm
Condensate drain Manually rotating
Symbol 00991531
Inlet pressure 1: 0 bar ... 16 bar
Flow rate with respect to atmosphere ≥ 4000 l/min
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Noise reduction Reduction by 40 dB
Corrosion resistance class (CRC) 2 - Moderate corrosion stress
Ambient temperature -10 °C ... 60 °C
Product weight 190 g
Pneumatic connection G1/4
Note on materials Free of copper and PTFE
Housing material PP
Make: Festo
filter silencer
LFU-1/4
Part number: 539132
FeatureValueShipping date ViewSize G1/4Assembly position Vertical +/- 5°Grade of filtration 1 µmCondensate drain manual rotaryInlet pressure 1 0 ... 16 barFlow rate to atmosphere >= 4,000 l/minOperating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)Noise reduction Reduction by 40 dBCorrosion resistance classification CRC 2 - Moderate corrosion stressAmbient temperature -10 ... 60 °CProduct weight 190 gPneumatic connection G1/4Materials note Free of copper and PTFEMaterial housing PP
